Working principle of the fully automatic four roller plate rolling machine production line

The four roller fully automatic rolling production line is an automated rolling production equipment further developed on the basis of the CNC 4 roller plate rolling machine. With it, the whole process from the plate being taken, sent to the equipment, sent into the machine, rolled to the final output can be completed automatically. Now let the editor of Nantong Chuangtu Machinery tell you how this production line works.

The working principle of the four roller fully automatic rolling production line is a bit complicated. It is composed of several subsystems. Like the plate conveying system, this system mainly transports the plates to be processed from the warehouse or the beginning of the production line to the automatic layering system. It is generally transported by conveyor belts or chains, so that the plates can be transported steadily and continuously.

Then there is the automatic material taking system. After the plates are layered, it starts to work. It will grab the plates from the layering place and send them to the automatic feeding system. This system has a very precise mechanical structure and sensors, so that the plates can be taken away accurately and steadily.

The automatic feeding system is to put the taken plate into the feeding place of the CNC four roll plate rolling machine. It usually works by driving devices such as servo motors or cylinders, and can accurately control the position and angle of the plate.

The automatic feeding system starts working when the CNC four roll plate rolling machine starts working, and it will slowly feed the plate into the working area of ​​the plate rolling machine. It is usually driven by a stepper motor or a servo motor, so that the plate can be fed in evenly and continuously.

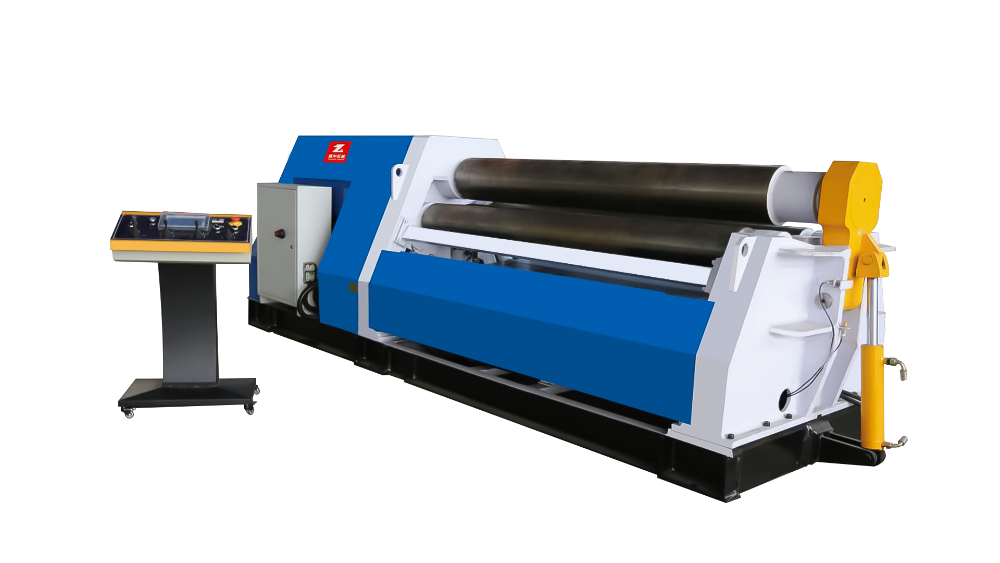

The CNC four roll plate rolling machine is the most important equipment in this production line. It can complete the rolling of the plate. It uses very advanced CNC technology, which can accurately control the final shape, size, and accuracy of the rolled plate. And it has four rollers, so that the plate is more stable and uniform when rolling, and the product quality is good and almost the same.

Finally, there is the automatic discharging system. After the rolling is completed, it takes the rolled plate out of the plate rolling machine and sends it to the specified place. It usually uses robotic arms or conveyor belts to deliver the plates accurately and steadily.
