How does a plate rolling machine operate, and what are the different types available?

In the world of metalworking, plate rolling machine play a vital role in shaping and forming metals into various cylindrical forms. Whether you're crafting a simple pipe or a complex tank, understanding how these machines operate can enhance your production process.

How a Plate Rolling Machine Operates

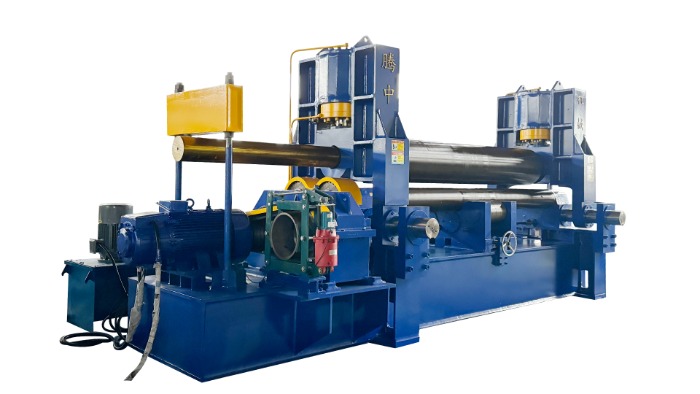

At its core, a plate rolling machine is designed to bend flat plates into a cylindrical shape. The operation typically involves three primary rolls: two bottom rolls and one top roll. The process begins with the operator positioning a flat plate between these rolls. As the rolls rotate, they apply pressure to the plate, gradually bending it into the desired curvature.

The top roll exerts downward force, while the bottom rolls move in a synchronized manner to guide the plate through the machine. This action not only creates the desired shape but also ensures that the material is evenly distributed to prevent any deformation or weaknesses in the metal.

Moreover, many modern plate rolling machines come equipped with advanced CNC (Computer Numerical Control) systems, allowing for precise control over the bending process. This technology enables operators to input specific parameters, such as angle and radius, ensuring consistent results and reducing the risk of human error.

Different Types of Plate Rolling Machines

Three-Roll Plate Rolling Machines:
The most common type, three-roll machines, utilize three cylindrical rolls arranged in a triangular configuration. This design allows for efficient bending and is suitable for a wide range of applications, from small fabrications to large industrial projects. Variants include initial pinch and pyramid type configurations, which differ in how the rolls are arranged and operated.

Four-Roll Plate Rolling Machines:
As the name suggests, these machines feature four rolls, providing greater control and precision during the rolling process. The additional roll serves as a support roll, which helps to maintain the shape of the plate throughout the bending operation. This machine is particularly useful for producing high-quality, tight-radius bends.

Vertical Plate Rolling Machines:
Unlike traditional horizontal machines, vertical plate rollers are designed to operate in a vertical orientation. This type is beneficial for rolling thicker plates and can often accommodate larger diameters. Vertical rolling machines are commonly used in industries where space is limited, allowing for efficient operation without taking up excessive floor space.

Hydraulic Plate Rolling Machines:
Hydraulic machines utilize hydraulic systems to apply force, offering greater flexibility in handling various materials and thicknesses. This type is particularly advantageous for rolling thicker plates, as the hydraulic mechanism provides consistent and powerful pressure throughout the process.

Plate rolling machines are indispensable tools in the metalworking industry, enabling the creation of cylindrical shapes with precision and efficiency. Understanding their operation and the different types available can help manufacturers choose the right equipment for their specific needs. Whether you're working with thick steel plates or crafting intricate designs, there's a plate rolling machine tailored to meet your requirements.
