How does the back gauge mechanism work in a shearing machine?

In the world of precision sheet metal fabrication, the back gauge mechanism plays a pivotal role in ensuring accuracy and efficiency during the shearing process. A back gauge, integral to the operation of modern shearing machine, functions as a key component in determining the length of the material to be cut, allowing the operator to maintain precision and consistency throughout the production run. But how exactly does this mechanism work?

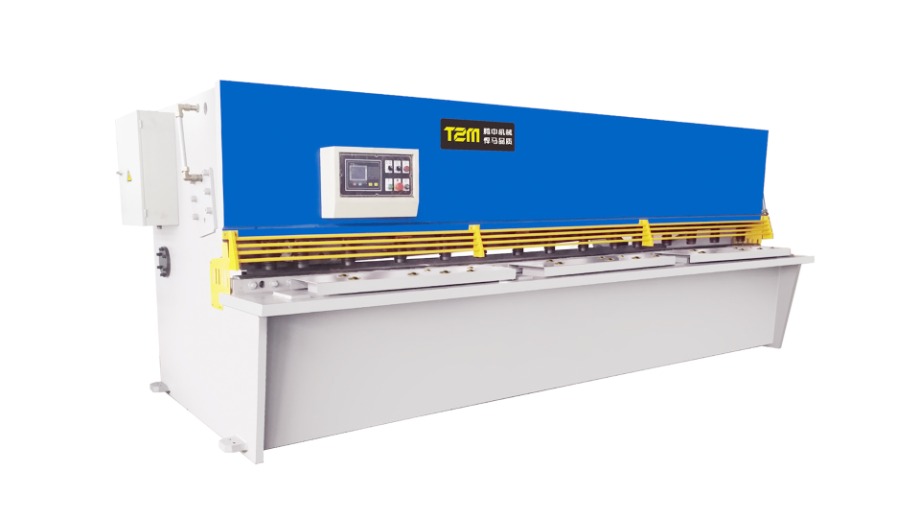

The Back Gauge System: An Overview
A back gauge is essentially a positioning system that controls the distance between the cutting blade and the sheet material. It ensures that each cut is made at the correct length, consistently and accurately. Typically, the back gauge consists of a movable rail, a positioning arm, and a stopper, all of which work in tandem to guide the material to the cutting point. The mechanism's role is fundamental, as it determines the repeatability and reliability of cuts made in successive operations.

Mechanism and Operation
The back gauge is connected to the rear of the shearing machine, where it positions the sheet metal prior to the cutting process. By adjusting the back gauge to the required measurement, operators can set the precise cutting length for each piece. The back gauge is typically powered by a motor and connected to a screw or linear guide system, ensuring smooth and precise movement along the shearing table.

In high-end shearing machines, this system can be automated, with digital controls that allow the back gauge to be adjusted rapidly for multiple cut lengths. These systems often feature digital readouts, ensuring that the operator has clear visibility into the exact position of the back gauge at all times.

Types of Back Gauge Mechanisms
Depending on the specific shearing machine model, there are several types of back gauge mechanisms:

Manual Back Gauge
This simple mechanism requires the operator to adjust the back gauge manually, usually via a hand wheel or lever. While these systems are reliable, they are more time-consuming and prone to errors if not calibrated correctly.

Motorized Back Gauge
This automated system offers greater precision and speed, as it moves the material into position at the press of a button. This is particularly useful for high-volume production runs where frequent adjustments are needed.

NC (Numerical Control) Back Gauge
In more sophisticated machines, the back gauge is integrated with numerical control systems. This allows for quick adjustments and the storage of cutting programs for different sheet sizes and cuts, reducing setup time significantly.

CNC (Computer Numerical Control) Back Gauge
The most advanced of the systems, CNC back gauges are fully programmable and can execute multiple cuts with extreme accuracy. They are ideal for high-precision tasks and environments requiring automated workflows.

Key Features and Benefits
The importance of the back gauge mechanism cannot be overstated. It offers several key advantages:

Precision
The back gauge ensures that every sheet is cut to the exact required dimensions, eliminating the risk of human error. With advanced systems, cuts are made with minimal deviation from the set length.

Efficiency
The back gauge reduces the time spent measuring and positioning material manually. This speed is especially crucial in high-volume production environments, where rapid and accurate cuts are necessary.

Repeatability
In any fabrication process, consistency is key. The back gauge allows for repeated cuts to be made to the same length, ensuring uniformity across all pieces in a batch.

Flexibility
Modern back gauges are highly flexible, capable of accommodating a wide range of sheet sizes and thicknesses. Whether dealing with thin sheets or heavy plates, the back gauge can be adjusted to provide consistent performance across various materials.

Challenges and Considerations
While the back gauge mechanism offers several advantages, it is not without its challenges. For instance, the precise movement of the back gauge must be regularly calibrated to ensure it remains accurate. Any wear and tear on the guides or the motor can result in inaccurate cuts, so regular maintenance is essential.

Moreover, in high-speed production environments, the back gauge must work seamlessly with the shearing machine’s overall operation. If the back gauge mechanism malfunctions or is out of sync, it can lead to delays, material wastage, or even damage to the machine.

The back gauge mechanism is a vital element in modern shearing machines, offering unparalleled precision, repeatability, and efficiency. Whether manual, motorized, or CNC-controlled, it provides the means for operators to position sheet materials accurately, ensuring every cut is made to the correct length with minimal error. Despite the challenges of maintenance and calibration, the benefits of the back gauge make it indispensable in high-quality sheet metal fabrication, where precision and consistency are paramount. For manufacturers aiming to improve both their workflow and product quality, understanding the back gauge system is key to mastering the shearing process.
