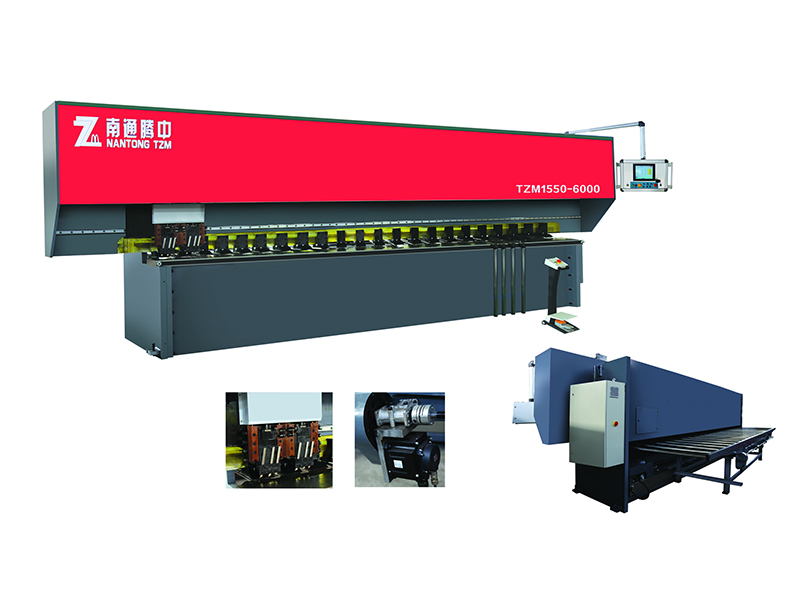

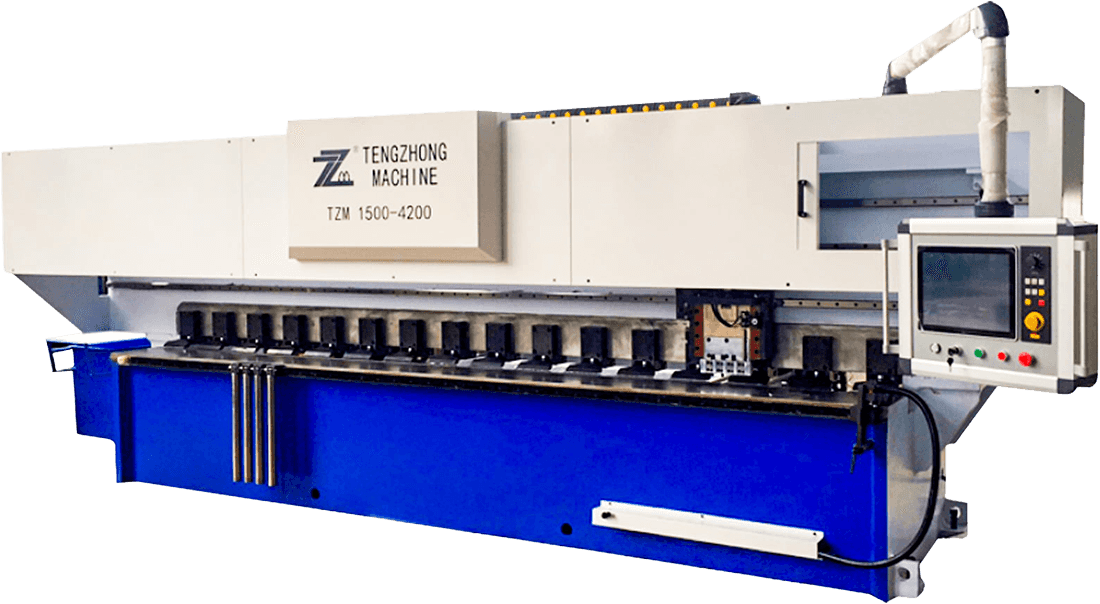

CNC Vertical Grooving Machine

CNC Vertical Grooving Machine is a kind of equipment used for metal plate processing, mainly used for planing plate processing. Equipped with the numerical control system, you can precisely control the trajectory and depth of the tool, to achieve high-precision machining. The workpiece is placed vertically on the machine tool, and the tool is processed horizontally on the surface of the workpiece, making the processing process more stable and the processing quality higher. CNC vertical grooving machines can perform a variety of processing operations such as notch cutting, planing, grooving, etc., suitable for wood processing needs of different shapes and sizes. Suitable for furniture manufacturing, plate processing, building decoration, and other industries, is a common plate processing equipment. CNC vertical slotting machine has the advantages of high precision, high efficiency, and simple operation, and one of the indispensable important equipment in the modern plate processing industry.

PREV：No previous article
NEXT：CNC Horizontal Grooving Machine

All welded steel frame

Stress relieved by quenching, with high strength and good stability.

Multiple groups of follow-up pressing devices on the short side

Combined with intelligent software algorithm, ensure the shortest path to realize the plate pressing and grooving method.

International brand main motor frequency conversion control

running smoothly.

Using CNC (numerical control) equipment

It can be fully automated for machining; The entire operating system of the machine is a precise combination of electrical and pneumatic components, which is easy to operate, flexible in action, efficient, low-noise, and environmentally friendly.

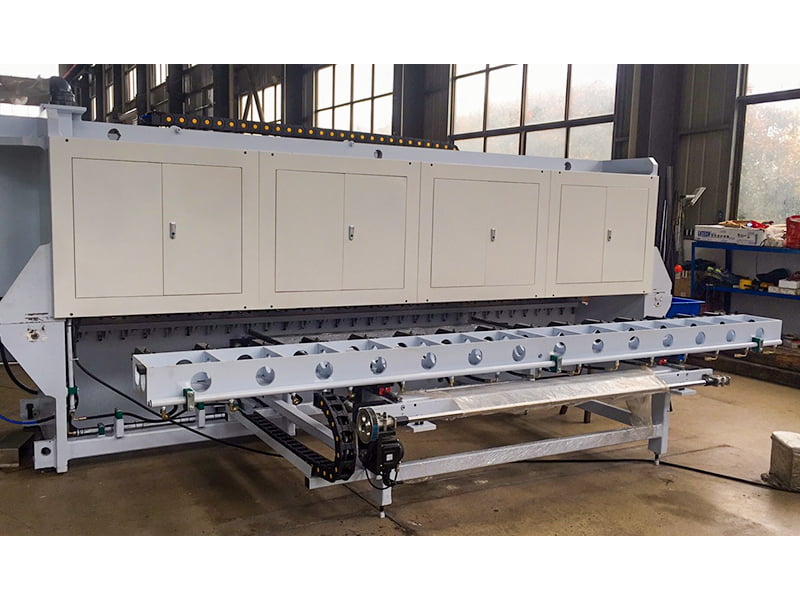

The equipment adopts a material delivery structure and clever design of stainless steel pipes

Ensure that the equipment does not damage the surface of the sheet metal during both feeding and discharging. Adjustable movable worktable ensures precise slotting depth for each part.

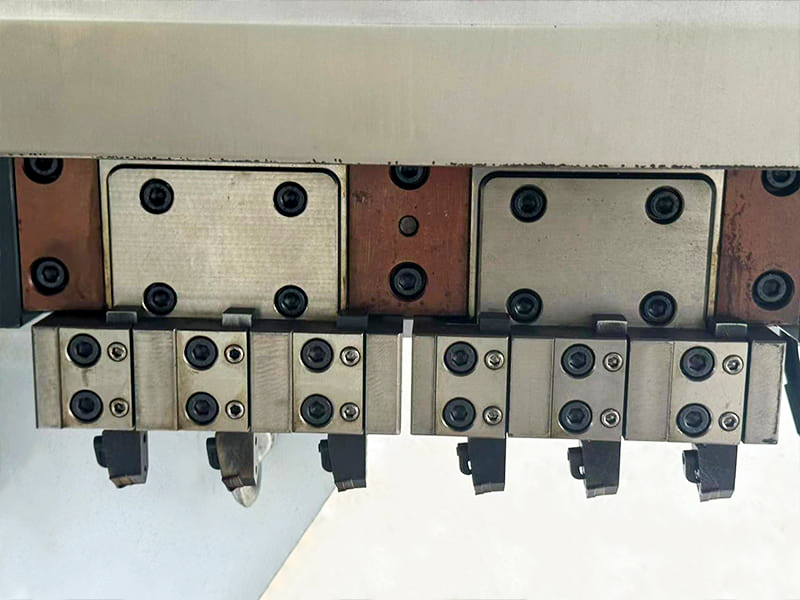

The equipment adopts the processing technology of five forming knives at the front and back

Greatly reducing the amount of iron filings generated during processing and greatly improving work efficiency.

The equipment adopts fully hydraulic material clamping and pressing

Fast and efficient work, ensuring that the processed products have no pinch marks or indentations, and the entire processing process is tracked for cooling and air blowing. The lighting system in the work area has reached its peak.

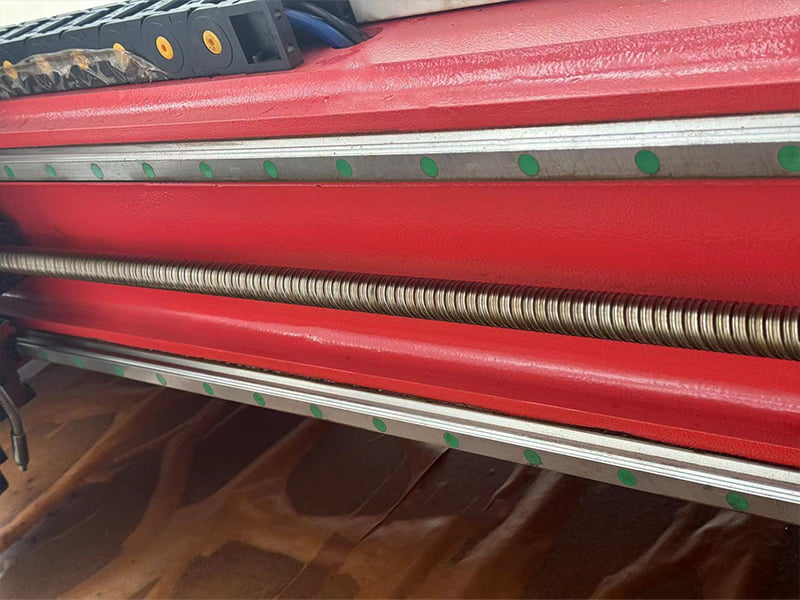

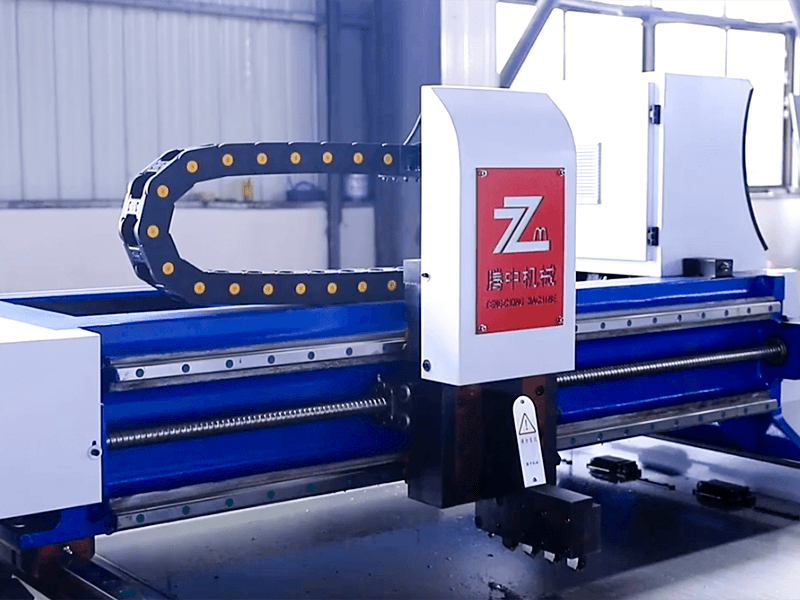

The equipment adopts high-speed alloy steel gear racks, large pitch ball screws, and high-precision, silent linear guides

The spindle system is driven by a high torque servo motor paired with an imported star reducer. Make the tool holder more stable and efficient in processing workpieces.

The equipment workbench uses high-strength sheet metal as the base surface

Make the workbench less prone to wear during workpiece processing. And the worktable panel and the machine body workpiece are adjustable, ensuring a distance accuracy of about 0.02mm from the cutting edge to every point on the worktable.

The equipment adopts PLC human-machine interface programming

There are two modes of dedicated slotting machine system technology. The operator is easy to learn and understand, with accurate positioning.

The equipment adopts full hydraulic control for material clamping and pressing

This has reached a high point in the concept of energy conservation and environmental protection for this machine.
Recommended Products
ABOUT US
Nantong Tengzhong Machinery Manufacturing Co., Ltd. is China CNC Vertical Grooving Machine suppliers and OEM/ODM CNC Vertical Grooving Machine company, located in the north wing of Shanghai Economic Center of Yangtze River Delta, Nantong Haian City Libao Development Zone, is a research and production enterprise to shear machine, bending machine and rolling machine and other machinery R & D, production, sales and service as one of the company specializing in the production of "Tengzhong" brand series hydraulic shearing machine, mechanical shearing machine, Hydraulic bending machine, hydraulic plate rolling machine, mechanical plate rolling machine, hydraulic Angle cutting machine, combined punching and shearing machine and other forging equipment, widely used in light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, steel structure construction and decoration industry. Tengzhong machinery has always adhered to the development concept of "producing excellent products, providing perfect service, and satisfying every user", and has always thought for customers and served customers sincerely. We look forward to working with you to create a better future together!
News
Message Feedback

How does the CNC vertical grooving machine enhance the quality of grooves in metal plates used for decorative or structural purposes?

The CNC vertical grooving machine enhance the quality of grooves in metal plates used for decorative or structural purposes in several key ways:

Precision Control:
The numerical control system (CNC) allows for extremely precise control over both the depth and trajectory of the tool. This ensures that grooves are consistently cut to exact specifications, minimizing deviations that could affect both aesthetic and structural quality.
The precision is critical for creating intricate decorative patterns or grooves that are perfectly aligned in structural applications, where even minor inaccuracies could compromise the overall integrity or visual appeal.

Consistent Quality:
Unlike manual grooving methods, CNC machines can perform repetitive cuts with uniform quality, ensuring that all grooves maintain the same depth, width, and finish across multiple pieces. This is essential in both decorative elements where visual consistency is important, and in structural elements where uniformity ensures proper fit and function.

Smooth Finishes:
CNC vertical grooving machines are designed to create clean, smooth cuts with minimal burrs or rough edges. The tool’s precise movement reduces the need for post-processing, such as sanding or finishing, which can also save time and enhance the quality of the final product.
For decorative metal plates, this means that intricate designs can be produced without requiring extensive finishing, preserving the clarity and sharpness of the grooves.

Complex Grooving Capabilities:
The CNC system allows for the creation of complex shapes and patterns that would be difficult or impossible to achieve manually. This is especially beneficial for decorative metal plates where ornate designs or custom grooves are required.
For structural applications, the ability to create precisely angled grooves or slots ensures that the plates fit together properly in assemblies, contributing to the strength and durability of the structure.

Material Efficiency:
The machine’s precise control reduces material wastage. By cutting only what is necessary and avoiding errors that might lead to scrap material, the machine can optimize the use of high-quality or expensive materials such as stainless steel or aluminum, which are often used in both structural and decorative applications.
In structural metalwork, this ensures that the material retains its maximum strength, while in decorative projects, it preserves the aesthetic integrity of the design.

Stability and Control During Operation:
The vertical configuration of the workpiece allows for better stability during the grooving process. As the tool moves horizontally across the plate, the risk of vibrations or movement that might affect the quality of the cut is minimized.
This stability is crucial for achieving smooth, accurate grooves, particularly on larger or thicker metal plates used in architectural facades or structural components.

Automated Operation for Efficiency:
The automation provided by the CNC system ensures high-speed production while maintaining quality. This combination of speed and precision is particularly important in large-scale structural projects or when producing decorative metal panels in bulk, ensuring that quality is not sacrificed for the sake of efficiency.

Customizable Settings:
The CNC system can be programmed to accommodate different groove profiles (depth, width, and shape), allowing manufacturers to customize the machine’s settings based on the specific requirements of the project.
This flexibility is particularly valuable for producing decorative metal panels where artistic elements may require varying groove depths or intricate detailing.

The CNC vertical grooving machine enhances the quality of grooves in metal plates by providing precise control, consistency, smooth finishes, and the ability to handle complex designs. These features are vital for both decorative metalwork—where aesthetics and detail matter—and structural applications, where precision ensures fit, strength, and reliability.
